The NeoR locking screw DW12.5×160 ensures a secure and fast connection. Due to the reinforced, 15mm thick plywood, the multi-purpose panels have a fresh concrete pressure absorption of 60kN/m².

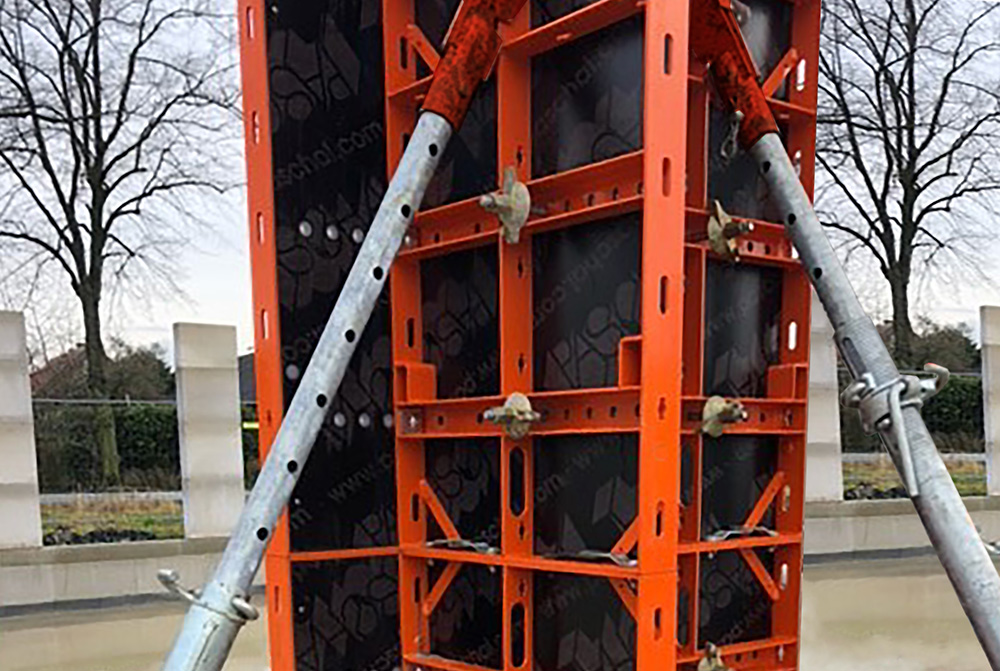

The panels are available in dimensions of 60cm x 90cm and 60cm x 150cm and offer maximum variability in manufacturing concrete columns. Square and rectangular column cross-sections with an adjustment range from 20-50cm and 5cm gradation can be formed with four multi-purpose panels at a time.
In addition to its use as column form panels, the NeoR multi-purpose panel can also be used for the end stop or as frontal end formwork by mounting the multi-purpose panel to the adjacent NeoR formwork panels using locking screws. The hole grid in the multi-purpose panel uses 5 cm intervals, so that wall thicknesses can be set with the same spacing of 10-40 cm. In addition, implementation with the standard wall thickness of 24cm is also possible.
The inside corner post and compensation panels are used together with the multi-purpose panel to form right angles. The multi-purpose panel is connected directly to the compensation panel via the integrated hole profiles by means of locking screws. In this way, wall thicknesses of 5-35cm in 5cm modular formwork and wall thicknesses of 24cm can be easily implemented in the system.
Worker safety at work is ensured by the Grip tread, which can be used as a working platform for the column form in combination with the Grip attachment. For this purpose, the accessories have been expanded to include the NeoR Multi ladder attachment for aligning the ladder and the Grip attachment.
