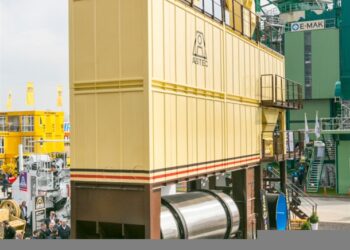

Astec has developed its BG series of batching plants around a modular design concept, with the BG1800 model unveiled at bauma 2019. Featuring an 1,800kg capacity mixer, the BG1800 is designed to be easy to transport and erect, while able to deliver outputs of up to 120tonnes/hour depending on the type of feed and mix required. The BG1800 has a 2m diameter drum and 15m2 of screen area, while its drum is equipped with the firm’s novel stainless steel V-flights, which boost operating life. The full BG range is for plants from 100-240tonnes/hour, with the units able to be equipped to handle up to 40% RAP in the feed, as well as being designed with low maintenance needs.

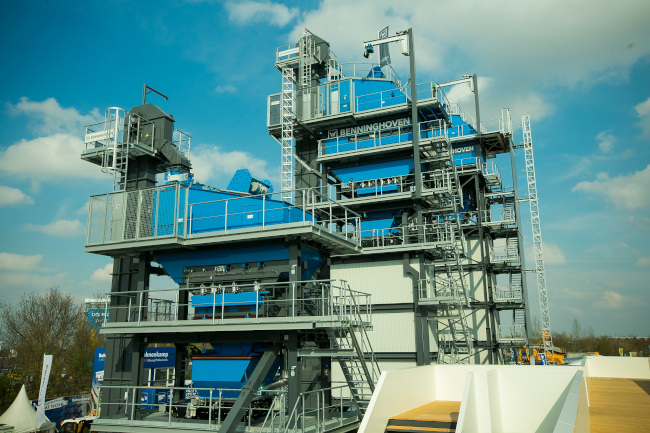

Despite being able to produce from 100-320tonnes/hour, Benninghoven’s ECO plants are containerised, making them highly mobile and able to be moved easily from site to site. Users can select from an array of features due to the modular design, with the option to install additional components later on if required. Additional towers can be added if needed and the plants are said to suit use on motorway or airport jobs where large material quantities may be required. Other features include the integrated material loading system.
According to CMI Roadbuilding, its Magnum Bullet plant, is designed to be assembled and commissioned onsite in very little time. Its versatility is further boosted by the ability to use up to 35% RAP in the feed. The plant can produce up to 150tonnes/hour and features a proven counterflow configuration.
Intrame’s Flow Mix continuous plants feature a drier and separate mixer and can use up to 50% RAP in the feed, according to the firm. However, the firm says that its parallel drum plants can use up to 75% RAP in the feed.
Modular design means that customers for Lintec & Linnhoff’s CE3000 plant can select from an array of options. This allows the customer to configure a plant to specific requirements, such as adding the firm’s warm mix system, silo options or recycling circuits. Capacities can range from 200-240tonnes/hour, depending on the type of feed and material being produced.
